Product Code: LG876
| Price: | Login For Price |
|---|---|
| Status: | In Stock |
Driving Lighting Automotive Industry Driving Lights Driving Spot Light
The LG876 is a high-performance 7-inch heavy-duty round LED driving light designed for trucks, commercial vehicles, 4x4s, off-road vehicles, and agricultural and construction machinery.
Equipped with 8 high-performance LEDs (4 × 10W and 4 × 5W), it delivers 4,800 effective lumens (6,000 raw lumens) for powerful and reliable illumination.
The advanced TIR and side-reflecting optical system produces a 30° combination beam, providing both long-distance visibility and wide-area illumination. With a peak intensity of 141,000 candela, the LG876 delivers a beam distance of up to 406 metres at 1 lux.
Integrated white and amber position lights offer additional lighting functionality, while the durable ADC12 die-cast aluminium housing, impact-resistant Lexan polycarbonate lens, and adjustable SUS304 stainless steel U-bracket ensure excellent durability.
Featuring Electronic Thermal Management (ETM), IP68/IP69K protection, and 9–36V DC compatibility, the LG876 is built for demanding working environments and challenging weather conditions.
60W high-performance LED driving light
8 LEDs (4 × 10W + 4 × 5W)
4,800 effective lumens (6,000 raw lumens)
30° combination beam for long-range and wide-area illumination
Beam distance of up to 406 metres at 1 lux
Peak beam intensity of 141,000 cd
5700K white light colour temperature
Advanced TIR and side-reflecting optical system
Integrated white and amber position lights
Electronic Thermal Management (ETM)
Heavy-duty ADC12 die-cast aluminium housing
Impact-resistant Lexan polycarbonate lens
IP68/IP69K protection rating
9–36V DC operating voltage
Adjustable SUS304 stainless steel U-bracket
ECE R112, R7 and R10 approvals
CE and RoHS compliant
| Specification | Details |
|---|---|
| Light Functions | Driving Light, White Position Light, Amber Position Light |
| LED Configuration | 8 LEDs (4 × 10W + 4 × 5W) |
| Rated Power | 60W |
| Effective Luminous Flux | 4,800 lumens |
| Raw Luminous Flux | 6,000 lumens |
| Operating Voltage | 9–36V DC |
| Colour Temperature | 5700K |
| Beam Pattern | 30° Combo Beam |
| Beam Distance | 1 lux @ 406m |
| Peak Beam Intensity | 141,000 cd |
| Optical System | TIR & Side-Reflecting Optics |
| Driving Light Current Draw | 4.0A @ 12V / 2.0A @ 24V |
| Position Light Current Draw | 0.06A @ 12V / 0.03A @ 24V |
| Position Light Colours | White / Amber |
| Specification | Details |
|---|---|
| Housing Material | ADC12 Die-Cast Aluminium Alloy |
| Lens Material | Lexan Polycarbonate (PC) |
| Bracket Material | SUS304 Stainless Steel |

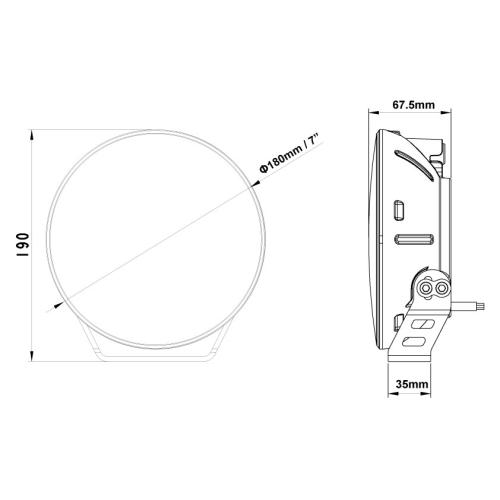

| Diameter | 180 mm (7") |
| Total Height with Bracket | 190 mm |
| Depth | 67.5 mm |
| Mounting Type | Adjustable Stainless Steel U-Bracket |
| Fastening Type | Bolt & Nut |
| Mounting Hole Diameter | 10.5 mm |
| Specification | Details |
|---|---|
| ECE R112 | Reference Number 37.5 |
| Additional ECE Approvals | ECE R7, ECE R10 |
| Other Compliance | CE, RoHS |
| Protection Rating | IP68 / IP69K |
| Operating Temperature | -40°C to +60°C |
| Thermal Management | Electronic Thermal Management (ETM) |
| Wire Colour | Function |
|---|---|
| Black | Common Ground (-) |
| Red | Driving Light (+) |
| White | White Position Light (+) |
| Yellow | Amber Position Light (+) |
Important: The E-mark approval does not apply when operating the amber position light.
Ideal for trucks, commercial vehicles, 4x4s, off-road vehicles, tractors, agricultural machinery, and construction equipment.
Suitable for installation on front bumpers, grilles, and roof bars using the adjustable stainless steel U-bracket.
1 × LG876 7" Round LED Driving Light
SUS304 Stainless Steel U-Bracket
Mounting Hardware
Installation Manual
