Product Code: LG877
| Price: | Login For Price |
|---|---|
| Status: | In Stock |
Driving Lighting Construction Equipment Driving Lighting Automotive Industry Driving Lights Driving Spot Light
The LG877 is a professional 8.5-inch heavy-duty round LED driving light designed for trucks, commercial vehicles, 4x4s, off-road vehicles, and agricultural machinery.
Equipped with 12 × 10W Cree XM-L2 LEDs, it delivers 9,600 effective lumens (12,000 raw lumens) for powerful long-range visibility. The advanced TIR optical system is available in Euro Beam and Spot Beam configurations, providing illumination distances of up to 425 metres and 545 metres respectively at 1 lux.
The LG877 features dual-power operation with Off-Road and ECE modes, integrated white and amber position lights, and a warning strobe function with synchronisation capability.
Built with a robust ADC12 die-cast aluminium housing, Lexan polycarbonate lens, and stainless steel mounting bracket, the lamp is designed to withstand demanding operating environments. IP68/IP69K protection and electronic thermal management provide durability and reliable performance.
120W LED driving light with 12 × 10W Cree XM-L2 LEDs
9,600 effective lumens (12,000 raw lumens)
Dual-power operation: Off-Road and ECE modes
White and amber position lights
Integrated warning strobe with synchronisation
Euro Beam and Spot Beam options
Advanced TIR optical system
Electronic Thermal Management (ETM)
Heavy-duty ADC12 die-cast aluminium housing
Impact-resistant Lexan polycarbonate lens
IP68/IP69K protection rating
9–36V DC operating voltage
Adjustable stainless steel mounting bracket
ECE R112, R7, R10 and R65 approvals
| Specification | Details |
|---|---|
| Light Functions | Driving Light, White Position Light, Amber Position Light, Warning Strobe |
| LED Configuration | 12 × 10W Cree XM-L2 LEDs |
| Rated Power | 120W |
| Effective Luminous Flux | 9,600 lumens |
| Raw Luminous Flux | 12,000 lumens |
| Operating Voltage | 9–36V DC |
| Power Modes | Off-Road / ECE |
| ECE Mode Current Draw | 7.7A @ 12V / 3.6A @ 24V |
| Optical System | TIR |
| Beam Pattern | Euro Beam / Spot Beam |

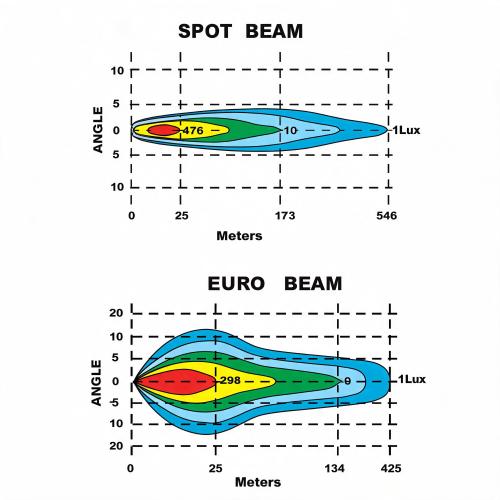

| Euro Beam Range | 1 lux @ 425m |
| Spot Beam Range | 1 lux @ 545m |
| Position Light Colours | White / Amber |
| Warning Light | Integrated Strobe with Synchronisation |
| Specification | Details |
|---|---|
| Housing Material | ADC12 Die-Cast Aluminium Alloy |
| Lens Material | Lexan Polycarbonate (PC) |
| Bracket Material | Stainless Steel |

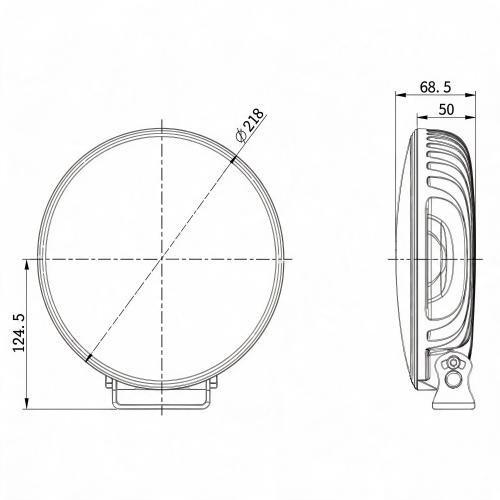

| Diameter | 218 mm |
| Depth | 68.5 mm |
| Bracket Base to Lamp Centre | 124.5 mm |
| Approximate Total Height | 233.5 mm |
| Mounting Type | Adjustable Stainless Steel Bottom Bracket |
| Fastening Type | Single Bolt & Nut |
| Specification | Details |
|---|---|
| ECE R112 | Euro Beam Ref. 37.5 / Spot Beam Ref. 50 |
| Additional ECE Approvals | ECE R7, R10, R65 |
| Other Certification | CE |
| Protection Rating | IP68 / IP69K |
| Operating Temperature | -40°C to +60°C |
| Thermal Management | Electronic Thermal Management (ETM) |
| Wire Colour | Function |
|---|---|
| Black | Ground (-) |
| Red | Driving Light (+) |
| Grey | White Position Light (+) |
| Yellow | Amber Position Light (+) |
| Green | Warning Light (+) |
| Blue | Synchronisation & Frequency (+) |
| Brown | Alternation (+) |
| White | Power Activation (+) |
Suitable for trucks, commercial vehicles, 4x4s, off-road vehicles, tractors, and agricultural machinery.
Designed for front bumper, grille, and roof bar installation.
1 × LG877 Round LED Driving Light
Stainless Steel Mounting Bracket
Mounting Hardware
Installation Manual
