Product Code: LG922R
| Price: | Login For Price |
|---|---|
| Status: | In Stock |
The LG922R is a high-performance, heavy-duty LED combination headlight designed for right-side installation on trucks, commercial vehicles, agricultural machinery, construction equipment, and off-road vehicles.
Featuring an advanced dual-optic lighting system, the headlight combines three powerful lighting functions within a single module. The upper section provides a 30W wide flood beam delivering 3,000 lumens, while the lower section incorporates a 45W high beam producing 4,500 lumens and a 35W low beam delivering 3,500 lumens.
Equipped with high-performance CREE LEDs, the LG922R provides effective forward illumination and wide-area visibility for demanding vehicle applications.
Constructed with a durable die-cast aluminium housing and polycarbonate lens, the headlight offers excellent resistance to harsh operating conditions. Its IP69K protection rating ensures high resistance to dust and high-pressure water jets.
Operating on 9–32V DC, the LG922R features factory-style mounting points and H11 connectors for convenient installation. With CISPR 25 Class 4 electromagnetic compatibility and ECE R148, R149 and R10 approvals, it provides a robust lighting solution for commercial and heavy-duty vehicles.
Heavy-duty LED combination headlight for right-side installation
Advanced dual-optic lighting system
Three lighting functions: Wide Flood, High Beam and Low Beam
30W wide flood beam delivering 3,000 lumens
45W high beam delivering 4,500 lumens
35W low beam delivering 3,500 lumens
High-performance CREE LED technology
9–32V DC operating voltage
Durable die-cast aluminium housing
Impact-resistant polycarbonate lens
IP69K protection rating
CISPR 25 Class 4 EMC performance
Operating temperature range from -40°C to +80°C
400 mm connection cable
Factory-style mounting points
ECE R148, R149 and R10 approvals
CE and RoHS compliant
| Specification | Details |
|---|---|
| Light Functions | Wide Flood Beam, High Beam, Low Beam |
| Lighting Technology | CREE LEDs |
| Optical System | Dual-Optic |
| Upper Section | Wide Flood Beam |
| Lower Section | High Beam & Low Beam |
| Wide Flood Power | 30W |
| Wide Flood Luminous Flux | 3,000 lumens |
| High Beam Power | 45W |
| High Beam Luminous Flux | 4,500 lumens |
| Low Beam Power | 35W |
| Low Beam Luminous Flux | 3,500 lumens |
| Operating Voltage | 9–32V DC |
| Cable Length | 400 mm |
| Connector 1 | Deutsch DT04-2P |
| Connector 2 | Square Multi-Pin Plug |
| Specification | Details |
|---|---|
| Housing Material | Die-Cast Aluminium Alloy |
| Lens Material | Polycarbonate (PC) |

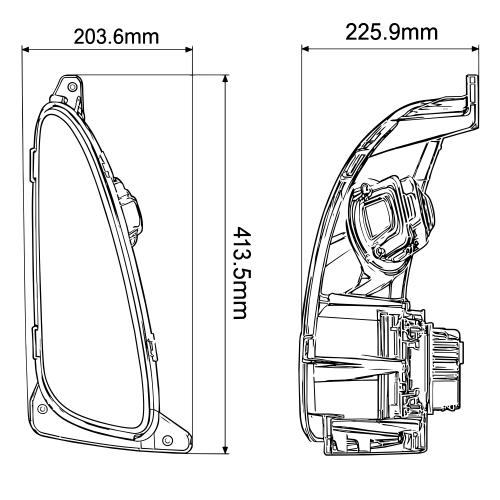

| Width | 203.6 mm |
| Height | 413.5 mm |
| Depth | 225.9 mm |
| Fitting Position | Right Side |
| Mounting Type | Replacement Headlight Module |
| Fastening Type | Factory Module Mounting Points |
| Specification | Details |
|---|---|
| Lighting Approvals | ECE R148, ECE R149 |
| EMC Approval | ECE R10 |
| Additional EMC Standard | CISPR 25 Class 4 |
| Other Compliance | CE, RoHS |
| Protection Rating | IP69K |
| Operating Temperature | -40°C to +80°C |
| Connector | Description |
|---|---|
| Connector 1 | Deutsch DT04-2P (2-Pin) |
| Connector 2 | Square Multi-Pin Plug |
1 × LG922R Right-Side LED Combination Headlight
H11 Connectors
Designed to provide powerful, precise illumination, this headlight is adapted to demanding working conditions, ensuring safe, efficient driving in all circumstances. It integrates perfectly into the front grille of tractors, offering an aesthetic consistent with the original design.
Compatibility :
T5000 series:
T6000 series :
T7500 series :
TLA series :
TSA series :
TVT series :
