The LG930 is a professional 8.5-inch heavy-duty round LED driving light designed for trucks, commercial vehicles, 4x4s, off-road vehicles, and agricultural and construction machinery.
Equipped with 8 high-performance Cree LEDs (4 × 20W and 4 × 10W), it delivers an impressive 10,200 effective lumens (12,000 raw lumens) for powerful long-range illumination.
The advanced, self-developed TIR optical system produces a combination beam pattern, delivering both long-distance visibility and wide-area illumination. With a peak intensity of 215,000 candela, the LG930 provides a beam distance of up to 469 metres at 1 lux.
Integrated white and amber position lights provide additional lighting functionality, while the heavy-duty ADC12 die-cast aluminium housing, Lexan polycarbonate lens, and adjustable stainless steel U-bracket ensure excellent durability.
Featuring electronic thermal management, IP68/IP69K protection, and 9–36V DC compatibility, the LG930 is built for reliable performance in demanding working environments.
120W high-performance LED driving light
8 Cree LEDs (4 × 20W + 4 × 10W)
10,200 effective lumens (12,000 raw lumens)
Combination beam for long-range and wide-area illumination
Beam distance of 469 metres at 1 lux
Peak beam intensity of 215,000 cd
Advanced TIR optical system
Integrated white and amber position lights
Electronic Thermal Management (ETM)
Durable ADC12 die-cast aluminium housing
Impact-resistant Lexan polycarbonate lens
IP68/IP69K protection against water and dust
9–36V DC operating voltage
Adjustable stainless steel U-bracket
50cm cable with 4-pin DT connector
ECE R112, R7 and R10 approvals
CE and RoHS compliant
| Specification | Details |
|---|---|
| Light Functions | Driving Light, White Position Light, Amber Position Light |
| LED Configuration | 8 Cree LEDs (4 × 20W + 4 × 10W) |
| Rated Power | 120W |
| Effective Luminous Flux | 10,200 lumens |
| Raw Luminous Flux | 12,000 lumens |
| Operating Voltage | 9–36V DC |
| Beam Pattern | Combo Beam |
| Beam Distance | 1 lux @ 469m |
| Peak Beam Intensity | 215,000 cd |
| Optical System | TIR |
| Driving Light Current Draw | 8.9A @ 12V / 4.3A @ 24V |
| Position Light Current Draw | 0.06A @ 12V / 0.03A @ 24V |
| Position Light Colours | White / Amber |
| Cable Length | 500 mm |
| Connector Type | 4-Pin DT Connector |
| Specification | Details |
|---|---|
| Housing Material | ADC12 Die-Cast Aluminium Alloy |
| Lens Material | Lexan Polycarbonate (PC) |
| Bracket Material | Stainless Steel |

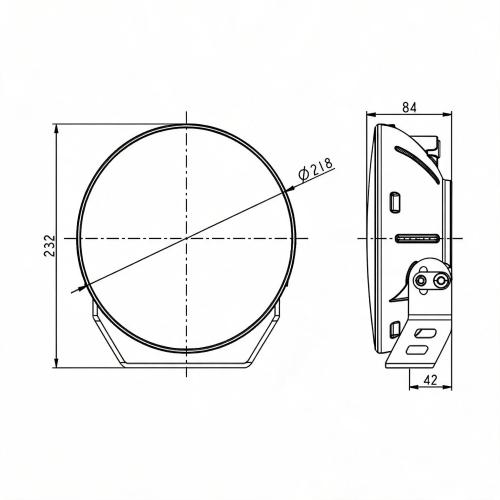

| Diameter | 218 mm |
| Total Height with Bracket | 232 mm |
| Depth | 84 mm |
| Mounting Type | Adjustable Stainless Steel U-Bracket |
| Fastening Type | Bolt & Nut |
| Mounting Hole Diameter | 10.5 mm |
| Specification | Details |
|---|---|
| ECE R112 | Reference Number 45 |
| Additional ECE Approvals | ECE R7, ECE R10 |
| Other Compliance | CE, RoHS |
| Protection Rating | IP68 / IP69K |
| Operating Temperature | -40°C to +60°C |
| Thermal Management | Electronic Thermal Management (ETM) |
| Wire Colour | Function |
|---|---|
| Black | Common Ground (-) |
| Red | Driving Light (+) |
| White | White Position Light (+) |
| Yellow | Amber Position Light (+) |
Important: The E-mark approval does not apply when operating the amber position light.
Ideal for trucks, commercial vehicles, 4x4s, off-road vehicles, tractors, agricultural machinery, and construction equipment.
Suitable for installation on front bumpers, grilles, and roof bars using the adjustable stainless steel U-bracket.
1 × LG930 8.5" Round LED Driving Light
Stainless Steel U-Bracket
Mounting Hardware
Installation Manual
