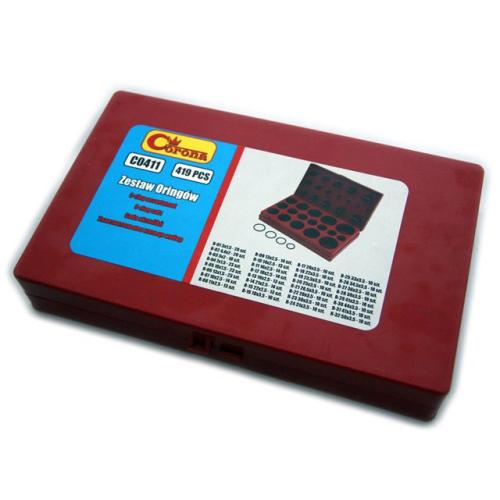

419 PIECE 0-RING ASSORTMENT SET

Product Code: C0411

Related Products

Miscellaneous Assorted Boxes

Product Details

Product Information

GERERAL CHARACTERISTICS

• O-Rings

• Assortment Box

• Qty: 419 Pieces

• Clip Material: Rubber

• Box Material: PP

• Colour: Black

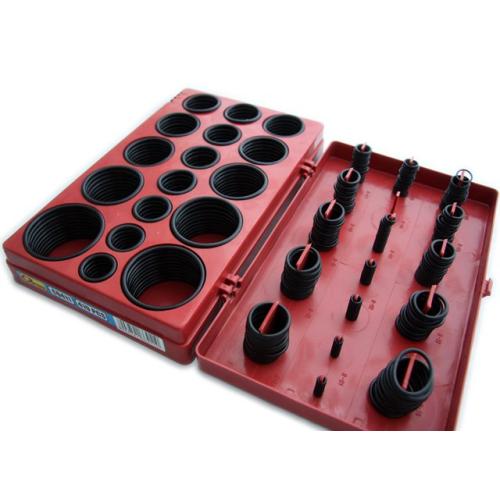

THE KIT INCLUDES THE FOLLOWING O-RINGS:R-01 3x1.5 - 20 pcs.
R-02 4,4x2 - 20 pcs.
R-03 5x2 - 18 pcs.
R-04 7x1,5 - 23 pcs.
R-05 10x1,5 - 23 pcs.
R-06 13x1,5 - 23 pcs.
R-07 10x2,5 - 14 pcs.
R-08 11x2,5 - 13 pcs.
R-09 13x2,5 - 14 pcs.
R-10 14x2,5 - 13 pcs.
R-11 16x2,5 - 14 pcs.
R-12 18x2,5 - 14 pcs.
R-13 19x2,5 - 13 pcs.
R-14 21x2,5 - 14 pcs.
R-15 22x2,5 - 13 pcs.
R-16 18x3,5 - 10 pcs.
R-17 20x3,5 - 10 pcs.
R-18 22x3,5 - 10 pcs.
R-19 23,5x3,5 - 10 pcs.
R-20 25x3,5 - 10 pcs.
R-21 26,5x3,5 - 10 pcs.
R-22 28x3,5 - 10 pcs.
R-23 30x3,5 - 10 pcs.
R-24 31x3,5 - 10 pcs.
R-25 33x3,5 - 10 pcs.
R-26 34,5x3,5 - 10 pcs.
R-27 36x3,5 - 10 pcs.
R-28 38x3,5 - 10 pcs.
R-29 41x3,5 - 10 pcs.
R-30 44x3,5 - 10 pcs.
R-31 47x3,5 - 10 pcs.
R-32 50x3,5 - 10 pcs.
WHAT ARE O-RINGS USED FOR.O ringsareused toblock a path which may otherwise allow a liquid or a gas to escape. Theo-ringis placed into a groove to secure them in place, and then compressed between two surfaces.
HOW TO MEASURE AN O-RINGTomeasurethe outside diameter, use a ruler tomeasurefrom one outer edge to the other of theo-ring. You candeterminethe third diameter of theO-ringwith 2 diameters using the followingequation: Outside Diameter (OD) = Inside Diameter + (2 x Cross Section). Inside Diameter (ID) = OD - (2 x Cross Section).
