Product Code: LG852
| Price: | Login For Price |
|---|---|
| Status: | In Stock |
Work Lighting Tractor Fit Lighting Case Deutz New Holland Massey Ferguson Claas John Deere Valtra Construction Equipment Work Lighting Agricultural Lighting Tractor Work Lights Tractor Fit Work Light
The LG852 is a powerful 40W LED rectangular work light delivering 3,000 lumens of bright, wide-area illumination. Featuring eight high-intensity CREE XTE LEDs and a flood beam pattern, it provides effective lighting for agricultural machinery, tractors and demanding working environments.
Designed with an adjustable mounting bracket, the LG852 offers flexible positioning and precise light direction. Its durable diecast aluminium housing and polycarbonate lens provide reliable performance in challenging agricultural and industrial conditions.
Operating on 10–30V DC, the LG852 is compatible with both 12V and 24V electrical systems. The integrated 2-pin Deutsch (DT) connector provides a convenient electrical connection, while CISPR25 Class 4 electromagnetic interference suppression helps minimise radio interference.
With ECE R10 approval, IP67 dust and water protection, 20G shock resistance and 8Grms vibration resistance, the LG852 is engineered for durability and long-term reliability, offering an expected service life exceeding 50,000 hours.
Suitable for a wide range of Massey Ferguson 4200, 4300, 6100, 6200 and 8100 series tractors.
40W LED work light delivering 3,000 lumens
Eight high-performance CREE XTE LEDs
Flood beam for wide-area illumination
6000K cool white light
Adjustable and rotatable mounting bracket
304 stainless steel mounting bracket with M10 single-bolt fixing
10–30V DC operating voltage
Compatible with 12V and 24V electrical systems
CISPR25 Class 4 radio interference suppression
ECE R10 approved
IP67 dust and water protection
20G shock resistance
8Grms vibration resistance (20–2000Hz)
Durable diecast aluminium housing
Polycarbonate lens
Integrated 2-pin Deutsch (DT) connector
50,000+ hour expected service life
Suitable for Massey Ferguson tractors
|
Specification |
Details |
|---|---|
|
Power |
40W |
|
Light Output |
3,000 lumens |
|

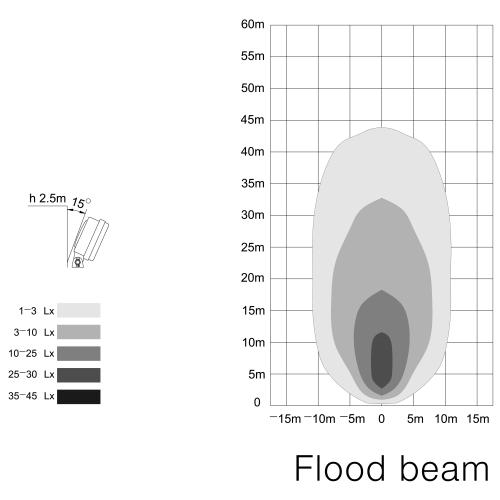

Beam Pattern |
Flood |
|
Colour Temperature |
6000K |
|
Number of LEDs |
8 |
|
LED Type |
CREE XTE |
|
Operating Voltage |
10–30V DC |
|
Expected Service Life |
50,000+ Hours |
|
Light Distribution |
1 Lux at 186 m |
|
Connection |
Integrated 2-Pin Deutsch (DT) Connector with Bare Fly Leads |
|
Specification |
Details |
|---|---|
|
ECE Approval |
ECE R10 |
|
EMC Suppression |
CISPR25 Class 4 |
|
Additional EMC Standards |
EN55015, EN61547, EN61000-3-2, EN61000-3-3 |
|
Protection Rating |
IP67 |
|
Operating Temperature |
-40°C to +50°C |
|
Shock Resistance |
20G |
|
Vibration Resistance |
8Grms (20–2000Hz) |
|
Specification |
Details |
|---|---|
|
Shape |
Rectangular |
|
Housing Material |
Diecast Aluminium |
|
Lens Material |
Polycarbonate |
|
Width |
156 mm |
|
Height |
122 mm |
|
Depth |
93 mm |
|
Mounting Type |
Adjustable Rotatable Bracket |
|
Bracket Material |
304 Stainless Steel |
|
Fastening Type |
M10 Single Bolt |
|
Specification |
Details |
|---|---|
|
Red Wire |
Positive (+) |
|
Black Wire |
Ground (−) |
|
Connector Type |
Integrated 2-Pin Deutsch (DT) Connector with Bare Fly Leads |
1 × 40W LED Work Light
1 × 304 Stainless Steel Mounting Bracket
M10 Single-Bolt Mounting Hardware
4225-4235-4240-4245-4255-4260-4265-4270, 4325-4335-4345-4355-4365-4370-6120-6130-6140-6150-6160-6170-6180-6190
6235-6245-6255-6260-6265-6270-6280-6290, 8110-8120-8130-8140-8150-8160-8170-8180-8210
*Original Equipment names, series numbers & images are quoted and shown for reference purposes only and are not intended to infer that our replacement parts are used as original equipment
