Product Code: LG847
| Price: | Login For Price |
|---|---|
| Status: | In Stock |
Work Lighting Tractor Fit Lighting New Holland Case Claas Massey Ferguson Construction Equipment Work Lighting Agricultural Lighting Tractor Work Lights Tractor Fit Work Light
The LG847 is a 40W LED oval work light delivering 3,200 lumens of bright, diffused flood illumination. Featuring a 360° rotatable swivel mounting bracket, it offers flexible installation in bottom or side mounting positions.
Equipped with 8 high-performance CREE XTE LEDs, the LG847 operates on 10–30V DC and provides excellent light distribution for agricultural and industrial applications.
Its durable diecast aluminium housing, IP68/IP69K protection and CISPR25 Class 4 electromagnetic interference suppression ensure reliable performance in demanding environments.
Suitable for a wide range of Massey Ferguson tractors and other compatible agricultural vehicles.
40W LED work light with 3,200 lumens
8 × 5W CREE XTE LEDs
Diffused flood beam for wide-area illumination
360° rotatable swivel mounting bracket
Bottom or side mounting
10–30V DC operating voltage
CISPR25 Class 4 radio interference suppression
ECE R10 approved and E-marked
IP68/IP69K water and dust protection
Vibration tested to 15G
50,000+ hour expected service life
DT plug-and-play connector
|
Specification |
Details |
|---|---|
|
Power |
40W |
|
Light Output |
3,200 lumens |
|
Beam Pattern |
Diffused Flood |
|
Colour Temperature |
5300–5700K |
|
LEDs |
8 × 5W CREE XTE |
|
Operating Voltage |
10–30V DC |
|
Service Life |
50,000+ hours |
|
EMC |
CISPR25 Class 4 |
|
ECE Approval |
E9-10R05.11636 Ext.01 |
|
Protection Rating |
IP68/IP69K |
|
Operating Temperature |
-40°C to +80°C |
|
Vibration Resistance |
Tested to 15G |
|
Specification |
Details |
|---|---|
|
Shape |
Oval |
|
Housing |
Diecast Aluminium |
|
Lens |
Polycarbonate (PC) |
|

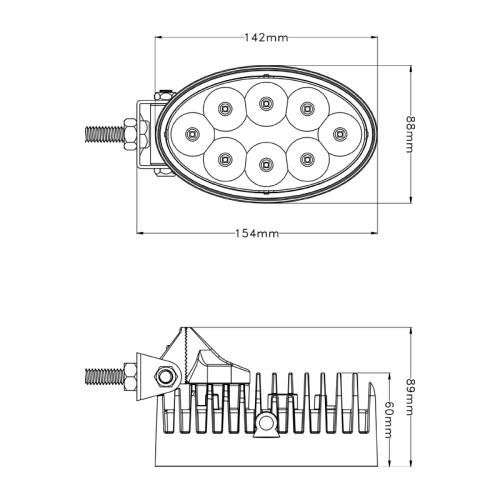

Width |
142 mm |
|
Height |
88 mm (housing) |
|
Height with Bracket |
97 mm |
|
Depth |
60 mm |
|
Mounting |
360° Rotatable Swivel Bracket |
|
Mounting Position |
Bottom or Side |
|
Connection |
DT Male & Female Connector |

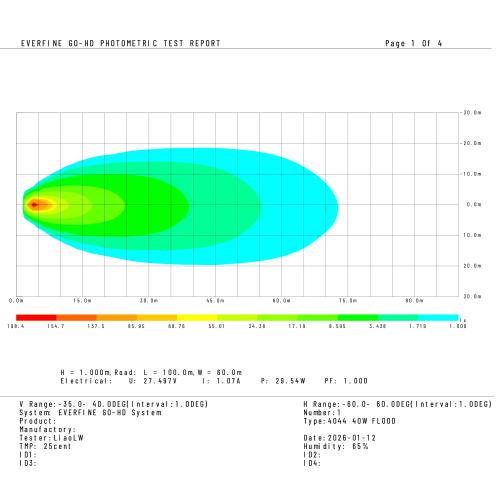

12 lux at 50 metres
1 lux at 186 metres
|
Wire Colour |
Function |
|---|---|
|
Red |
Positive (+) |
|
Black |
Ground (−) |
|
Connector |
DT Male & Female |
New Holland: 84138309, 84138310, 84254556, 84254557, 84254565, 84254566, 84273088, 84273089, 84274549, 84274551
CASE IH: 84565655, 84565663
Massey Ferguson: 3786666M91, 3786668M91, 3786668M93, 4272829M91, 4275161M91, 4275162M91
JCB: 63/1931-48
Claas: 00155640
Hella: 1GA996161787, 1GA996361187, 1GA996161647, 1GA996161637, 1GN996361461, 1GA996161291, 1GA996461547, 1GA996361497
OEM numbers and manufacturer names are provided for identification and cross-reference purposes only. Compatibility should be verified before purchase.
1 × LED Work Light
1 × 360° Swivel Mounting Bracket (bottom or side mount)
