Product Code: LG505
| Price: | Login For Price |
|---|---|
| Status: | Coming Soon |
Tail & Marker Lighting Construction Equipment Tail Light Agricultural Lighting Tail Lighting Automotive Industry Combination Lights Combination Light
The LG505 is a rechargeable wireless LED magnetic trailer tail light kit designed for convenient, cable-free lighting on trailers and agricultural equipment.
Featuring a wireless 7-pin transmitter and powerful magnetic mounting bases, the kit allows quick installation and removal without the need for wiring between the vehicle and rear lamps.
Each lamp is equipped with a 2600mAh rechargeable lithium battery, providing up to 8 hours of operation on a full charge. The batteries recharge in approximately 2.5 hours via Micro-USB, while integrated battery level indicators display the remaining charge at 25%, 50% and 100%.

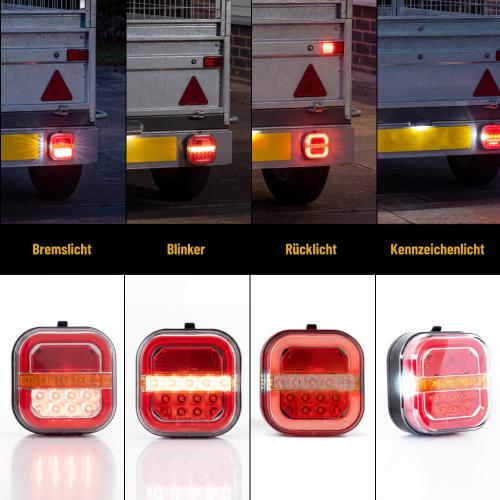

The kit provides five essential rear lighting functions: rear position, brake, direction indicator, number plate illumination and reflector.
Built with durable black housings and rated IP67 for dust and water protection, the LG505 is suitable for demanding agricultural and trailer applications.
Compatible with 12V and 24V vehicle electrical systems through the supplied wireless transmitter.
100% wireless, cable-free trailer lighting system
Rechargeable 2600mAh lithium battery
Up to 8 hours of battery operation
Approximately 2.5-hour charging time
Wireless 7-pin transmitter
Strong magnetic bases for quick installation and removal
Five lighting functions: rear position, stop, indicator, number plate light and reflector
Battery charge indicators: 25%, 50% and 100%
Micro-USB charging connection
12–24V compatible transmitter
IP67 dust and water protection
ECE R3, R6 and R7 approvals
CE, RED and RoHS compliance listed
Complete left and right lamp kit with storage box
|
Function |
LED Quantity |
Power |
|---|---|---|
|
Rear Position / Tail |
24 LEDs |
2W |
|
Brake / Stop |
8 LEDs |
2W |
|
Direction Indicator |
5 LEDs |
1W |
|
Number Plate Light |
4 LEDs |
0.5W |
|
Reflex Reflector |
Built-in |
Passive |
|
Specification |
Details |
|---|---|
|
Product Type |
Wireless LED Rear Combination Lamp Kit |
|
Light Functions |
5 |
|
Lamp Position |
Left & Right |
|
LED Technology |
SMD LEDs |
|
LED Colours |
Red, Amber, White |
|
Lens Colours |
Red / Clear |
|
Battery Capacity |
2600mAh Lithium |
|
Battery Life |
Up to 8 hours |
|
Charging Time |
Approximately 2.5 hours |
|
Transmitter Voltage |
12–24V DC |
|
Charging Voltage |
5V USB |
|
Wireless Connection |
7-Pin Transmitter |
|
Charging Port |
Micro-USB |
|
Battery Indicator |
25%, 50%, 100% |
|
ECE Approvals |
ECE R3, R6, R7 |
|
Other Compliance |
RED, CE, RoHS |
|
Protection Rating |
IP67 |
|
Operating Temperature |
-40°C to +65°C |
|
Specification |
Details |
|---|---|
|
Housing Colour |
Black |
|

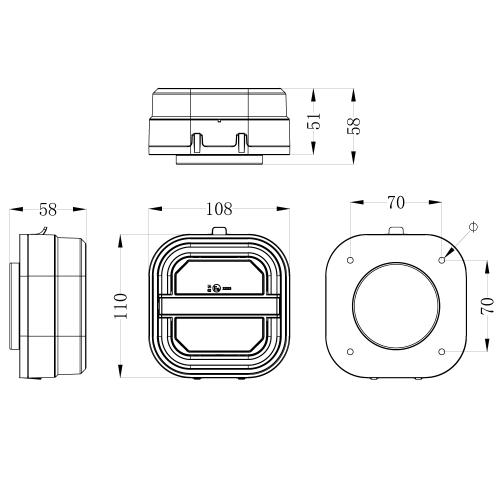

Width |
108 mm |
|
Height |
110 mm |
|
Depth |
58 mm |
|
Mounting Type |
Magnetic Base |
|
Mounting Position |
Universal |
|
Net Weight |
0.75 kg |
|
Gross Weight |
1.55 kg |
|
Specification |
Details |
|---|---|
|
Vehicle Connection |
Wireless 7-Pin Transmitter Plug |
|
Lamp Connection |
Wireless – No Cables Required |
|
Charging Connection |
Micro-USB |
|
Charging Supply |
5V USB |
|
Charging Time |
Approximately 2.5 Hours |
Suitable for universal trailer and agricultural equipment applications, subject to compatible 7-pin vehicle connections and secure magnetic mounting surfaces.
1 × Left LED Tail Light
1 × Right LED Tail Light
1 × Wireless 7-Pin Transmitter
1 × USB Adaptor
1 × Charging Cable
1 × Storage Box
